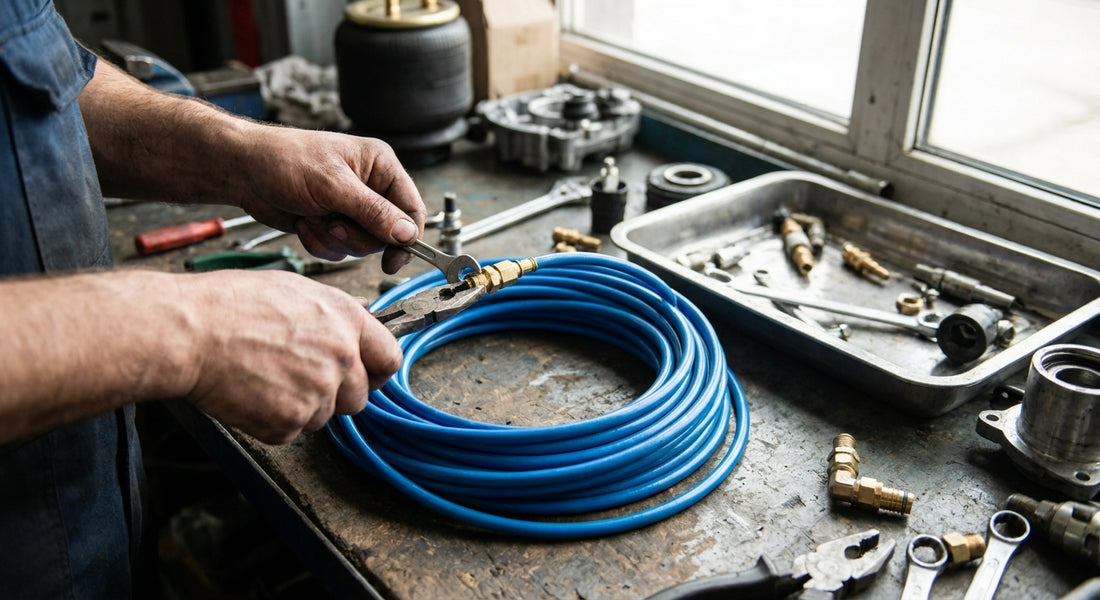

How to Fit Air Suspension Fittings the Right Way (2026)
Getting air line fittings and push-fit connectors right is the difference between a load assist kit that holds pressure for years and one that leaks down every fortnight. This guide covers cutting, connecting and testing air suspension fittings and air line correctly, whether you're plumbing a load assist kit, an aluminium air tank or a pressure controller in 2026.
- Fitting air suspension fittings correctly starts with matching thread type before cutting any air line, since mixing metric and NPT threads is the most common install mistake.
- A square cut on 1/4 inch air line prevents most push-fit leaks; an angled cut is the top failure point.
- The Boss Air Suspension airbag fitting kit covers connectors for most load assist installs - Buy for a straightforward setup.
- Test every joint with soapy water at full operating pressure, not at idle, since slow leaks rarely show below 40 PSI.
Why this matters
A load assist kit only holds ride height if the air line and fittings actually hold pressure. In practice, most reported leaks in load assist and onboard air systems come down to three things: a bad cut on the air line, an NPT fitting tightened past its rated turn, or a push-fit connector that wasn't pushed home fully.
None of these take long to fix once you know what to check. Get the fittings right the first time on a Boss Air Suspension load assist kit and it will run reliably for years rather than needing repeat attention every few months.
What you'll need
- Air line cutting tool or a sharp utility knife - a clean, square cut matters more than the tool you use
- 1/4 inch air line in the length needed for the run, plus a short offcut for test fits
- PTFE thread tape for every NPT thread
- An airbag fitting kit if you're starting a load assist install from scratch, since it covers most of the push-fit and NPT connectors used across Boss Air Suspension load assist kits
- A spanner set for T-fittings, elbows and bulkhead connectors
- Soapy water in a spray bottle for pressure testing
- A tyre pressure gauge or the gauge on your pressure controller
The steps
1. Match the thread type before you cut anything
Confirm whether each fitting is NPT (tapered thread) or push-fit before you touch a hacksaw. Boss Air Suspension air tanks, compressors and controllers use a mix of 1/4 inch NPT ports and push-fit air line connectors, and forcing the wrong thread into a port strips it in seconds. Check the port markings or the product listing before ordering fittings, not after installing them.
Expected outcome: every fitting screws or pushes in without resistance beyond the last one or two turns. Common mistake: assuming every port on a kit is the same thread size - tanks with five ports often mix sizes across the same tank.
2. Cut the air line square
A square cut lets the push-fit collet grip the full circumference of the line; an angled cut leaves a gap that leaks under pressure. Use a dedicated air line cutter if you have one, or a sharp knife against a flat surface, cutting in one motion rather than sawing back and forth.
Run a thumb around the cut end to check for burrs or ovality before inserting it. Expected outcome: a flat, round end with no visible ridges. Common mistake: cutting with dull side cutters, which pinch the line into an oval and guarantee a slow leak.
3. Push the air line fully home
Insert the air line into the push-fit connector until it stops - most fittings need 15 to 20mm of line inside the body before the seal engages properly. Push firmly, then give the line a light tug to confirm it's locked in; it shouldn't move.
The most common fitting mistake isn't over-tightening, it's stopping before the line is pushed all the way home. Expected outcome: the line doesn't pull free with moderate hand pressure. Common mistake: stopping as soon as the line looks flush, without pushing past the first resistance point.
“The most common fitting mistake isn't over-tightening, it's stopping before the line is pushed all the way home.”
4. Route the line clear of heat, sharp edges and moving parts
Air line run near an exhaust, chassis rail or moving suspension component will chafe through or soften over time. Keep at least 50mm clearance from exhaust components and use P-clips or cable ties every 300 to 400mm along the chassis to stop the line sagging or rubbing.
Avoid tight bends under 25mm radius, which kink the line and restrict air flow. Expected outcome: the line sits clear of everything that moves or gets hot, with a smooth path from tank to airbag or accessory. Common mistake: zip-tying the line directly to a brake or fuel line, which transmits vibration and wear to both.
5. Fit T-pieces, elbows and bulkhead connectors with the right tape
Wrap PTFE tape clockwise around NPT threads two to three times, then hand-tighten and finish with a spanner for a quarter to half a turn past snug. Push-fit bodies don't need tape - they seal on an internal O-ring, not the thread.
Over-tightening an NPT fitting cracks the alloy or plastic body long before it improves the seal. Expected outcome: the fitting sits flush with no visible thread, and no air escapes when tested. Common mistake: taping a push-fit thread that doesn't need it, which can stop the fitting seating fully.
6. Connect the tank, compressor and pressure controller
Mount the tank and compressor first, then run air line to each connection point rather than cutting all the lines before anything is bolted down - measurements change once components are actually in place. Connect the compressor outlet to the tank inlet, then the tank to the controller, keeping any water trap upstream of the controller to protect solenoids from moisture.
Expected outcome: air flows from compressor to tank to controller without any T-piece left unused or capped incorrectly. Common mistake: mounting the tank below the compressor without a drain point, which lets condensation pool inside the air lines instead of the tank.
7. Pressurise the system and test every joint
Bring the system up to normal operating pressure - most load assist setups run between 20 and 90 PSI depending on load - and spray soapy water on every fitting, not just the ones you touched last. Bubbles forming at any joint mean it needs another quarter turn or a fresh push-fit insertion, not more tape.
This is also the point to test and adjust airbag suspension pressure properly rather than guessing by eye. Expected outcome: no bubbles at any fitting after five minutes under full pressure. Common mistake: testing only at low pressure, which hides a leak that only shows up once the system works harder under load.
Troubleshooting
- Slow leak that only shows up overnight - Recheck every push-fit connector with the tug test; a line that isn't pushed fully home can hold pressure for hours before it creeps down.
- Air line kinks near a tight bend - Add a fitting instead of forcing a bend under 25mm radius; a 90-degree elbow costs less than a replacement line.
- Fitting won't seal no matter how much tape is added - Stop adding tape. Cracked NPT threads or an out-of-round push-fit line need replacing, not more sealant.
- Pressure drops faster under load than at rest - Check the airbag itself before blaming the fittings; a chafed line at a moving suspension component often only leaks once the suspension compresses.
- Compressor runs constantly but tank pressure won't climb - Check every T-piece and bulkhead fitting on the tank; a single ignored port can bleed air as fast as the compressor fills it.
- Water in the air line - Fit a water trap upstream of any pressure controller or digital gauge; moisture in the line corrodes solenoids and can cause problems in cold conditions.
Tools and resources
The right fittings and air line matter more than the tool used to cut them. These cover most load assist and onboard air installs in 2026:
What to do next
Once the fittings and air line are tested and leak-free, the next variable that affects ride height and comfort is air pressure itself - how much air to run for the load being carried. Read how to choose the right PSI for load assist airbags before setting a baseline pressure, since the correct figure changes with load, tyre pressure and whether you're towing or running unladen.
FAQ
What size air line do most load assist kits use?
Most Boss Air Suspension load assist kits and onboard air systems run on 1/4 inch air line, though some tank and compressor connections step up to 3/8 inch. Check the fitting or port markings before cutting a new line, since mixing sizes needs a reducer fitting rather than force.
How do I know if a push-fit fitting is sealed properly?
A properly seated push-fit fitting won't pull free with a firm tug and shows no bubbles when sprayed with soapy water at full operating pressure. If the line moves at all, push it in further or check the collet inside the fitting for debris.
Do I need PTFE tape on every fitting?
PTFE tape is needed on NPT threaded connections but not on push-fit bodies, which seal on an internal O-ring rather than the thread. Taping a push-fit thread can stop it seating correctly.
Why does my air suspension keep losing pressure overnight?
An overnight pressure drop almost always points to a fitting that wasn't pushed fully home or a line cut at an angle rather than square. Re-test every joint with soapy water at full pressure, including ones that seemed fine on the first check.
Can I use standard air line for a load assist kit?
Use air line rated for the pressure your system runs, generally up to 150 PSI for load assist and onboard air setups, rather than generic workshop air line rated for lower pressure. Line rated below system pressure can bulge or fail at the fitting.
How tight should NPT air fittings be?
Hand-tighten NPT fittings with PTFE tape applied, then finish with a spanner for roughly a quarter to half a turn past snug. Going further cracks the fitting body rather than improving the seal.
What causes air line to kink near suspension components?
Air line kinks when routed through a bend tighter than about 25mm radius or left unsecured near a component that moves. Add an elbow fitting at tight turns instead of forcing the line to bend, and clip it every 300 to 400mm.
Is it better to fit air suspension fittings myself or use a workshop?
Fitting air suspension fittings correctly is a straightforward DIY job with basic hand tools if you take time on the cuts and test every joint under full pressure. Workshops handle it quickly for owners who'd rather not deal with pressure testing or don't have a compressor on hand.
One last thing
Most fitting failures show up within the first week of use, not months later. If a joint hasn't leaked by day seven under normal towing or load pressure, it's very unlikely to develop a leak on its own.
Spend the extra twenty minutes testing every connection before loading up and driving off in 2026, rather than finding out on the side of the road.
