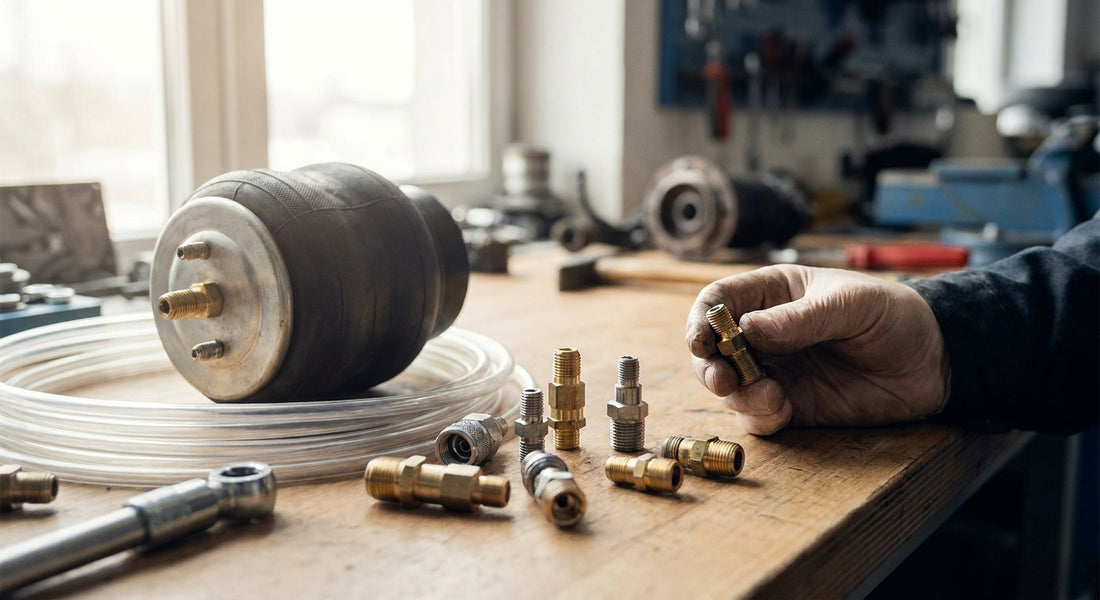

Schrader Valve Fittings for Air Suspension: 2026 Guide
Every air suspension setup needs a way to add or release air, and that job usually falls to a schrader valve. Get the wrong fitting or a bad seal and you're chasing a slow leak for months instead of enjoying a level ride.
- A schrader valve is the same style of valve used on car tyres, and it's the standard inflation point for most load assist airbag kits in 2026.
- Match thread size and airline diameter first - 1/4 inch push-fit and 3/8 NPT are the two most common formats on Australian setups.
- Boss Air Suspension's Schrader Valve with 1/4 inch Push-Fit Connection suits manual inflation kits without a compressor - Buy for simple setups.
- PTFE tape on NPT threads and a soap-water leak test after fitting catch most installation mistakes before they become a flat airbag.
Why this matters
A schrader valve is a small, spring-loaded valve core that lets air in but seals itself shut when you're not actively inflating. It's the same design used on every car and bike tyre, which is why most 4WD and caravan owners already understand how it works without reading a manual.
On a load assist airbag kit, the schrader valve is your access point. Whether you're running a manual hand pump, a 12V compressor, or a full digital air controller, the air has to get into the airbag through a schrader-style fitting somewhere in the line.
Get the fitting wrong - wrong thread, wrong airline size, wrong seal - and you'll get a slow leak that shows up as sag after a few days of towing. That's the single most common callback Boss Air Suspension sees on DIY air suspension installs, and it's almost always a fitting issue rather than a faulty airbag.
For a broader look at getting fittings and airlines right across the whole system, the guide on fitting air suspension fittings and airlines correctly covers the plumbing side in more depth.
What you'll need
- A schrader valve fitting matched to your airline size (1/4 inch push-fit is the most common on load assist kits)
- PTFE thread tape if the fitting has an NPT thread
- A small adjustable spanner or fitting wrench
- Soap and water (or a proper leak detection spray) for testing
- A tyre gauge or digital air pressure gauge
- Your existing airline and airbag fitting kit, if you're retrofitting rather than fitting new
- 15 to 30 minutes, depending on access to the fitting point
If you're building the whole air line from scratch rather than replacing one fitting, an airbag fitting kit gives you the tees, elbows and straight fittings needed to route air from the tank or compressor to each airbag, with the schrader valve as the final inflation point.
The steps
1. Confirm your airline size and thread type
Before buying anything, check what size airline your kit already uses. Most Boss Air Suspension load assist kits run 1/4 inch push-fit airline, though some onboard air systems step up to 3/8 inch for faster fill rates.
Push-fit fittings just push into the airline and grip internally - no tools needed. NPT-threaded schrader valves need to be screwed into a manifold, tank port or bracket, and those threads need sealant to hold pressure.
Mixing sizes is the number one cause of failed connections. A 3/8 inch fitting forced into 1/4 inch airline will never seal properly, no matter how hard you push it.
2. Choose the right schrader valve for your setup
If you're running a simple manual inflation setup with a hand pump or a 12V compressor plugged in only when needed, a straightforward push-fit schrader valve does the job with no extra hardware. The Schrader Valve with 1/4 inch Push-Fit Connection is built for exactly this - inflate, check pressure, disconnect.
If you're building a more permanent onboard air system with a fixed manifold, a threaded schrader fitting like the SCHRADER 3/8 W PUSH FIT gives you a solid connection point that won't work loose from vibration over thousands of kilometres of towing.
3. Cut the airline square before fitting
A push-fit schrader valve only seals properly on a clean, square-cut airline end. An angled or ragged cut lets air escape past the internal O-ring even when the fitting looks fully pushed home.
Use a sharp utility knife or dedicated airline cutter, not scissors. Scissors tend to pinch the tube into an oval shape, which stops it seating correctly in the push-fit collar.
Common mistake: using side-cutters or old scissors and ending up with a crushed tube end - if the airline looks pinched, cut off another 10mm and try again.
4. Push the airline fully into the fitting
Push the airline into the schrader valve's push-fit collar until it stops - you should feel it seat against an internal shoulder. A properly seated fitting won't pull back out under moderate hand pressure.
Give it a firm tug once fitted. If it slides back out, the collar isn't gripping, which usually means the airline is undersized, damaged, or the cut end wasn't square.
5. Seal and tighten threaded connections
For any NPT-threaded schrader valve, wrap PTFE tape clockwise around the male thread two to three times, leaving the first thread or two bare so tape doesn't shed into the airline.
Hand-tighten first, then use a spanner for a final quarter to half turn. Overtightening threaded air fittings is common and it cracks fittings or strips threads in aluminium tanks - snug is enough, not gorilla-tight.
6. Pressure test before you rely on it
Inflate the airbag or tank to a moderate pressure - 20 to 30 PSI is enough for a leak check, you don't need full operating pressure yet. Mix a few drops of dish soap into water and brush it over the new fitting.
Bubbles mean a leak. No bubbles after two minutes means the connection is sound. This step takes five minutes and saves you from a flat airbag on the side of the highway later.
7. Set your operating pressure and log it
Once the fitting is confirmed leak-free, set the airbag pressure to suit your load, following your kit's pressure guidance. Most Boss Air Suspension load assist kits run somewhere between 5 and 90 PSI depending on load and vehicle, and getting this number right matters more than the fitting itself for ride quality.
For guidance on setting the correct number for your load, the article on choosing the right PSI for load assist airbags walks through it by vehicle type and load.
Troubleshooting
- Slow leak over several days - almost always the schrader valve core itself. Cores can be replaced individually with a valve core removal tool before you replace the whole fitting.
- Fitting won't hold air at all - check the airline is cut square and fully seated. A shallow push-in is the most common cause of an immediate leak.
- Bubbles at a threaded fitting - remove it, re-tape with fresh PTFE, and reseat. Old or torn tape rarely seals a second time.
- Valve cap missing and dirt getting into the core - always refit the dust cap after checking pressure. Grit in the valve core is a common cause of pressure loss on 4WDs used off-road.
- Fitting feels loose after a few months of towing - vibration can work threaded fittings loose over time. Check torque on threaded schrader valves every few thousand kilometres if you tow regularly.
- Can't get an accurate pressure reading - a worn valve core sometimes reads inconsistently on cheap gauges. Test with two different gauges before assuming the airbag has an issue.
Tools and resources
- Airline cutter or sharp utility knife
- PTFE thread tape for NPT connections
- Small adjustable spanner
- Soap-water solution or leak detection spray
- Digital or analogue tyre pressure gauge
- Boss Air Suspension's airbag fitting kit if you need the full range of tees, elbows and straight connectors alongside your schrader valve
If your setup uses solenoid valves or a manifold rather than a single manual schrader point, the guide on auxiliary air valves for load assist airbag kits explains how those components work alongside your schrader fittings.
What to do next
Once the schrader valve is fitted and leak-tested, spend five minutes checking the whole system holds pressure overnight before you load up and tow. A fitting that passes a soap test under load might still show a slow leak once the airbag sits at full pressure for 12 hours.
If you're not confident diagnosing a leak yourself, the step-by-step guide on testing and adjusting airbag suspension pressure covers the full pressure-check process from cold reading to loaded reading.
FAQ
What is a schrader valve used for on air suspension?
A schrader valve is the inflation and pressure-check point on a load assist airbag kit or onboard air system. It's the same spring-loaded valve design used on car and bike tyres, letting you add air with a pump or compressor while sealing itself shut afterward.
What size schrader valve fitting do I need for my airbag kit?
Most Boss Air Suspension load assist kits use 1/4 inch push-fit airline as standard in 2026, though some onboard air systems step up to 3/8 inch for faster fill rates. Check your existing airline diameter before buying a replacement fitting.
Can I use a car tyre valve as a schrader valve on air suspension?
Standard tyre valve cores use the same internal design as suspension schrader valves, but the housing and thread need to match your airline or manifold port. Don't assume a spare tyre valve will thread straight into an airbag fitting without checking size first.
Why is my schrader valve leaking air?
A leaking schrader valve is usually caused by a worn valve core, a poorly seated push-fit connection, or old PTFE tape on a threaded fitting. Test with soap and water at low pressure to pinpoint exactly where the bubbles form.
Do I need PTFE tape on a schrader valve fitting?
Yes, if the fitting is NPT-threaded rather than push-fit. Wrap the male thread two to three times with PTFE tape, leaving the first thread bare, then hand-tighten before a final quarter turn with a spanner.
How often should I check schrader valve fittings on a towing setup?
Check pressure and inspect fittings for leaks every few thousand kilometres if you tow regularly, and before any long trip. Vibration from regular towing can gradually loosen threaded fittings over months of use.
What's the difference between a push-fit and threaded schrader valve?
A push-fit schrader valve grips the airline internally with no tools required, suited to simpler manual inflation setups. A threaded schrader valve screws into a manifold or tank port and holds up better on permanent onboard air systems that see constant vibration.
Can a bad schrader valve cause an airbag to sag while towing?
Yes. A slow leak through a worn valve core or a poorly seated fitting is one of the most common causes of gradual airbag sag reported to Boss Air Suspension, and it's almost always fixed by replacing the fitting rather than the airbag itself.
One last thing
The valve core inside a schrader valve is a wear item, not a lifetime part - if a fitting starts leaking after two or three years of regular towing, try a $5 core replacement before you write off the whole fitting as faulty.
