Plumb Multiple Air Outlets From One Tank: 2026 Guide
Plumbing multiple air outlets from one onboard air tank comes down to one job: split the air supply so each outlet gets full pressure on demand, without one accessory starving another. Get the manifold and line sizing right and a single tank can run tyre inflation, an air locker and a pneumatic tool independently.
- Plumb multiple air outlets from one onboard air tank using a manifold block, not extra tank ports alone.
- A 5-port aluminium air tank supports up to four separate outlets plus a fill or gauge connection.
- Isolation valves on each outlet stop one accessory draining pressure meant for another - fit them as standard.
- 1/4 inch airline handles most 12V and 24V onboard air setups rated to 150 PSI in 2026.
Why this matters
Most onboard air problems in 2026 aren't caused by a weak compressor. They're caused by plumbing that was never designed to feed more than one outlet at a time.
Run a tyre inflator and an air locker off the same unregulated line and you'll see pressure drop at both ends. The fix isn't a bigger compressor - it's a manifold that splits supply properly and valves that let you isolate each circuit.
This matters most for 4WD owners running air lockers, tyre inflation and pneumatic tools off one system, and for tradies and tourers who added extra air outlets after the original setup was installed.
What you'll need
- An aluminium air tank with enough ports for your outlet count (3-port tanks suit two outlets, 5-port tanks suit three to four)
- A manifold block or T-fittings rated for your system's working pressure
- 1/4 inch airline, cut to length for each outlet run
- Push-to-connect or compression fittings matching your tank and manifold thread
- A ball valve or isolation valve for each outlet
- PTFE thread tape or liquid sealant for every metal-to-metal joint
- A pressure gauge to check each outlet independently
- Around 2-3 hours for a three-outlet setup, longer if you're running lines through the chassis or under a tray
If you're setting up from scratch rather than adding to an existing system, a packaged option like the PX06 compressor and 9L tank kit already includes the tank, fittings, water trap and coupling, which saves sourcing each part separately.
The steps
1. Map every outlet before you cut a single line
List every accessory that needs air: tyre inflation point, air locker, pneumatic tools, or a second inflation point in the tray. Each outlet needs its own dedicated line back to the tank or manifold - never daisy-chain outlets off one another.
Skipping this step is the most common mistake. Owners run one line, then tee off it later, and end up with pressure drop every time two accessories are used together.
2. Confirm your tank has enough ports
A 3-port tank works for a simple two-outlet setup: one in from the compressor, one out to the accessory, one for a gauge or safety valve. A 5-port tank gives you the room for three to four separate outlet runs without crowding one port with a multi-way adaptor.
If you're already short on ports, moving up to a 5-port aluminium air tank is usually simpler than trying to split one port four ways with adaptors, which increases the number of joints that can leak.
3. Install a manifold block downstream of the tank

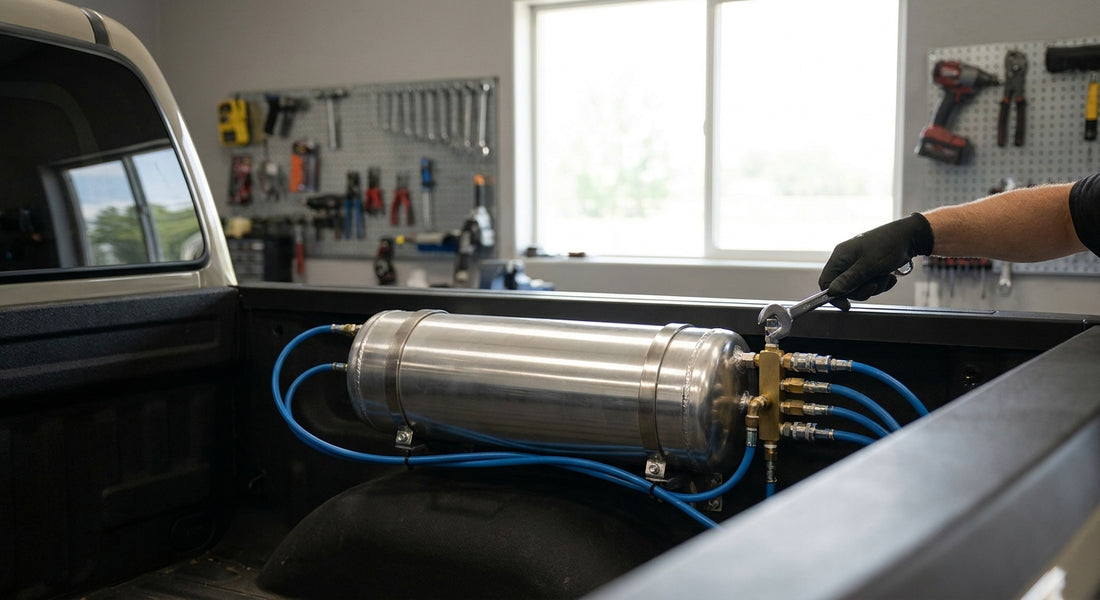

A manifold block takes one supply line from the tank and splits it into multiple regulated outlets, each with its own port. This is the part that actually lets you "plumb multiple air outlets" without pressure loss - not extra ports on the tank itself.
Mount the manifold somewhere accessible for future maintenance, not buried behind other components. Check a manifold block setup guide if you're unsure how many outlets a single block will support at your working pressure.
4. Run dedicated 1/4 inch airline to each outlet
Measure each run from the manifold to its outlet point and cut airline with a clean, square cut - a ragged cut edge is a common cause of slow leaks at push-to-connect fittings. 1/4 inch line handles the vast majority of onboard air setups up to 150 PSI.
Secure the line every 300-400mm with clips or P-clamps so it doesn't chafe against the chassis or rub through with vibration over time.
5. Fit an isolation valve on every outlet
Each outlet gets its own ball valve or shut-off, positioned close to the outlet point. This lets you close off one circuit - say, the air locker line - while running tyre inflation at full pressure, without cross-feeding air between the two.
Without isolation valves, every outlet is always live, and the system behaves like one big shared line rather than several independent ones.
6. Pressure test each circuit separately
With all outlets closed except one, run the compressor and check that outlet reaches full system pressure. Repeat for each outlet in turn, then open two at once and confirm neither drops below a usable working pressure.
A drop of more than 10-15 PSI when a second outlet opens usually points to an undersized manifold port or a line that's too long for its diameter.
Troubleshooting
Pressure drops when a second outlet is opened. Check for an undersized manifold port or airline that's too long for its diameter - upsizing from a shared port to a dedicated manifold outlet usually fixes this.
One outlet won't build pressure at all. Isolate that circuit and check for a closed valve, a kinked line, or a push-to-connect fitting that hasn't seated fully - these are the most common cause of a dead outlet in an otherwise working system.
Air leaks at push-to-connect fittings. Confirm the airline was cut square and pushed in fully to the collet. A soapy water test at each joint will show bubbles at the leak point in seconds.
Compressor cycles constantly even with outlets closed. This points to a leak somewhere in the tank or manifold circuit, not the outlets themselves - check every joint back to the tank before assuming the compressor is faulty.
Fittings loosen after towing or off-road driving. Vibration works metal fittings loose over months of use. Re-torque and reseal with fresh PTFE tape at your next service interval, and check that lines are clipped, not left to hang and flex.
Tools and resources
- Manifold block, sized for your outlet count and working pressure
- 1/4 inch airline and matching push-to-connect fittings
- Ball valves for isolation on each outlet
- PTFE tape or thread sealant
- A reliable pressure gauge
If you're still deciding on isolation hardware, a guide on fitting airlines correctly covers thread types and sealing methods in more detail than fits here.
What to do next
Once the outlets are plumbed and tested, the next weak point is usually the compressor's control switch. A guide on installing a pressure switch walks through wiring the switch that turns your compressor on and off automatically, which matters more once you've got several outlets drawing from the same tank.
FAQ
What's the best way to plumb multiple air outlets from one onboard air tank?
Fit a manifold block downstream of the tank and run a dedicated 1/4 inch line to each outlet with its own isolation valve. This keeps outlets independent so one accessory doesn't rob pressure from another.
How many outlets can a 5-port air tank support?
A 5-port tank typically supports three to four outlets once you account for a compressor feed and a gauge or safety port. For more outlets, a manifold block downstream gives more flexibility than adding tank ports.
Is 1/4 inch airline big enough for multiple outlets?
Yes, 1/4 inch airline handles most 12V and 24V onboard air setups rated up to 150 PSI in 2026. Larger diameter line is rarely needed unless you're running high-flow tools continuously.
Do I need a separate valve for each air outlet?
Yes. An isolation valve on each outlet lets you shut off one circuit, like an air locker, while running another, like tyre inflation, at full pressure without cross-feed.
Why does pressure drop when I open a second outlet?
This usually means the manifold port or airline is undersized for the combined demand. Upsizing to a dedicated manifold outlet rather than a shared port generally fixes it.
Can I add extra outlets to an existing onboard air system?
Yes, provided the tank has a free port or you fit a manifold block to create more outlets. Adding outlets without a manifold by teeing off an existing line is the most common cause of pressure problems.
What causes leaks at push-to-connect airline fittings?
A ragged or angled cut on the airline is the most common cause. Cut the line square and push it fully into the collet, then check the joint with soapy water.
How much does it cost to set up multiple air outlets from one tank?
Costs vary with tank size, manifold choice and the number of outlets, so check current pricing on individual components. A 5-port tank, manifold block and fittings typically make up the bulk of the parts cost.
One last thing
The detail most owners miss in 2026 isn't the tank size or the compressor - it's clipping the airline properly. An unclipped line rubbing against a chassis rail for a few thousand kilometres will wear through and fail long before any fitting does, and it's the cheapest five minutes of the whole job to get right.
